MP-Z03 Type 2 16A/32A, 3.5KW 7KW Portable Ev Charger Ac Station for Electric Vehicle
MP-Z03 Type 2 16A/32A, 3.5KW 7KW Portable Ev Charger Ac Station for Electric Vehicle
Factory Hot-selling Portable EV Charger for Electric Car Charger,
Auto Electric Car Station
Product Description:
1. Input/Output Voltage: 100~250VAC
2. Output Current: 16A/32A

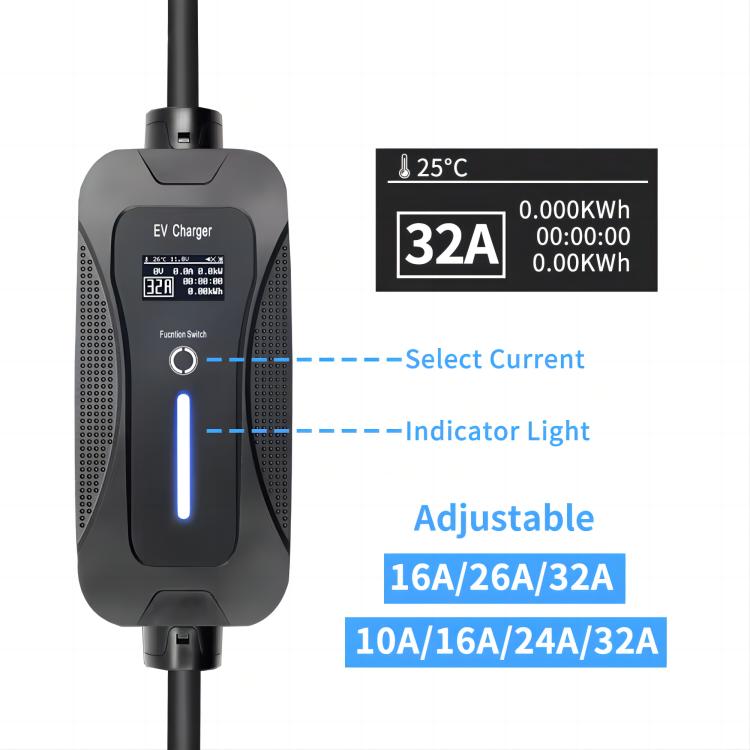

3. Fixed and Adjustable Current optional
4. Automatic error correction
5. Automatic re-connection
6. Over voltage protection
7. Water proof level IP66
8. Customized Logo
Auto Electric Car Station
Product Description:
1. Input/Output Voltage: 100~250VAC
2. Output Current: 16A/32A
3. Fixed and Adjustable Current optional
4. Automatic error correction
5. Automatic re-connection
6. Over voltage protection
7. Water proof level IP66
8. Customized Logo
| Technical Features | |||
| Max Power | 3.5KW | 7KW | 11KW |
| Input/Output Voltage | 250V/1Phase | 250V/1Phase | 380V/ 3Phase |
| Output Current | 16A | 32A | 16A |
| Standards | IEC 61851-1 | ||

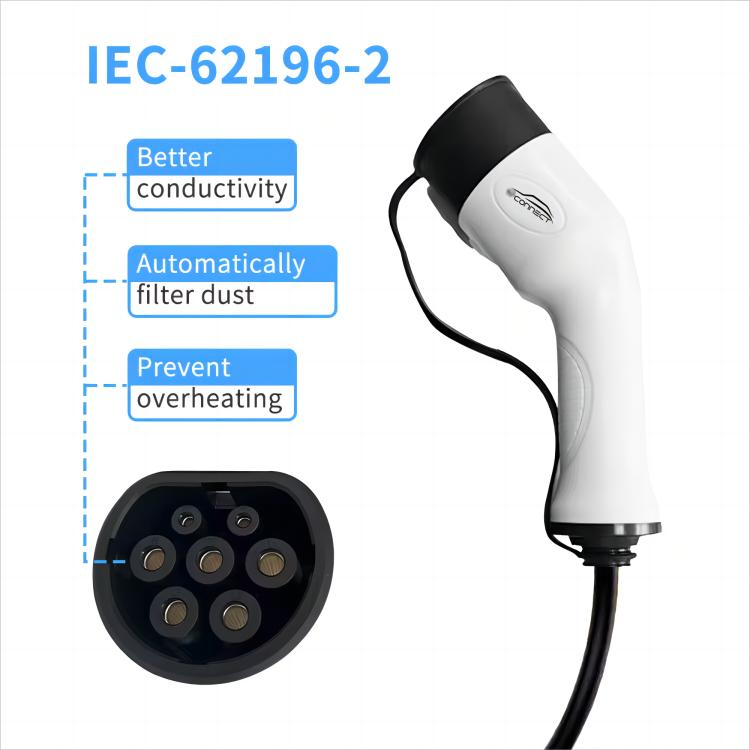

| Charging Interface | IEC 62196 Type 2 | ||
| Waterproof Grade | IP66 | ||
| Contact Resistance | 0.5mΏ Max | ||
| Insulation Resistance | >500MQ (DC500V) | ||
| Withstand Voltage | 1500V | ||
| Mechanical Life | No-load plug in/pull out >10000 times | ||
| Impat of Exteral Force | Can afford 1m drop | ||
| Coupled Inseron Force | 45N<F<100N | ||
| Operating Temperature | -30~+50℃ | ||
| Case Material | Thermoplastic, flame retardant grade UL90 V-0 | ||
| Terminal Material | Copper alloy, silver plating | ||
| Control Box Function | Leakage protection, Overvoltage under-voltage protection, Over load protection, Ground protection, Over-temperature protection |
||
