Hot sell Manufactor supplier 7kw Type 2 EV Charging Cable 5M
MC-T021
Description：
The EV charging cable is compatible with 16A/32A public and home charging points. Compatible with Type 1/Type 2 Electric Vehicles and Type 1/Type 2 Hybrid Vehicles. With an IP65 water and dust resistance rating, which means the cable will still work even in rainy situations. You don't have to worry about charging when you're outside. Find a suitable public charging station, remove the EV charging cable from the trunk of your EV car, and you're ready to charge your EV.
Description：
The EV charging cable is compatible with 16A/32A public and home charging points. Compatible with Type 1/Type 2 Electric Vehicles and Type 1/Type 2 Hybrid Vehicles. With an IP65 water and dust resistance rating, which means the cable will still work even in rainy situations. You don't have to worry about charging when you're outside. Find a suitable public charging station, remove the EV charging cable from the trunk of your EV car, and you're ready to charge your EV.
| Technical Features | ||||||||
| Max Power | 3.5KW | 7KW | 11KW | 22KW | ||||
| Input/Output Voltage | 250V/1Phase | 250V/1Phase | 415V/3Phase | 415V/3Phase | ||||
| Output Current | 16A | 32A | 16A | 32A | ||||
| Standard | IEC 62196 -1:2014 IEC 62196-2:2017 IEC 61851-1:2019 | |||||||
| Certificate | CE, TUV, UKCA | |||||||

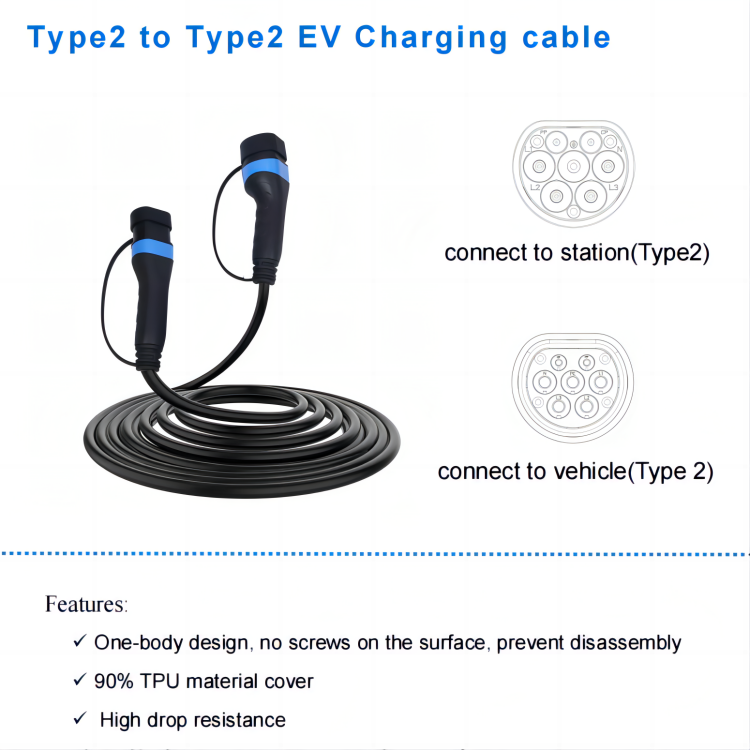

| Carging interface | Type2--Type2 | |||||||
| Color | Blue or Black | |||||||
| Cable Materia (Optional) | TPE or TPU | |||||||
| IP Degree | IP65 | |||||||
| Mechanical Life | No-load plug in/pull out >10000 times | |||||||
| Coupled Inseron Force | >45N<80N | |||||||
| Impat of Exteral Force | Can afford 1m drop and 2t vehicle run over pressure | |||||||
| Insulation Resistance | >1000MQ (DC500V) | |||||||
| Terminal Temperature rise | <50K | |||||||
| Withstand Voltage | 2000V | |||||||
| Operating Temperature | -30~+50℃ | |||||||
| Cable Length | 5M or Customized | |||||||
