Type 2 to Type 2 32A 3 Phases EV Cable 22kw EV Charging Extension Cable
Type 2 to Type 2 32A 3 Phases EV Cable 22kw EV Charging Extension Cable
MC-T2
Description：

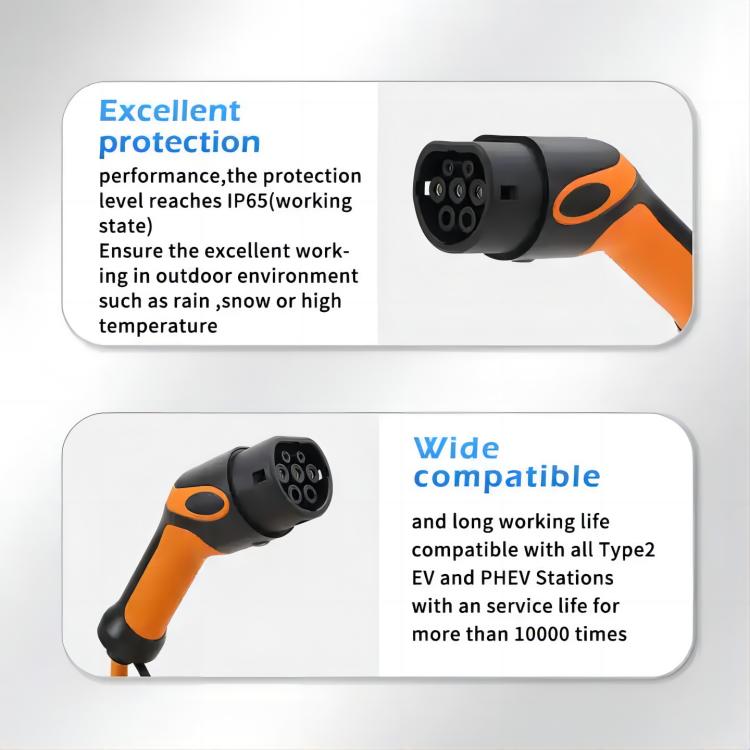

The EV charging cable is compatible with 16A/32A public and home charging points. Compatible with Type 1/Type 2 Electric Vehicles and Type 1/Type 2 Hybrid Vehicles. With an IP65 water and dust resistance rating, which means the cable will still work even in dirty or rainy situations. You don't have to worry about charging when you're outside. Find a suitable public charging station, remove the EV charging cable from the trunk of your EV car, and you're ready to charge your EV.
Description：
The EV charging cable is compatible with 16A/32A public and home charging points. Compatible with Type 1/Type 2 Electric Vehicles and Type 1/Type 2 Hybrid Vehicles. With an IP65 water and dust resistance rating, which means the cable will still work even in dirty or rainy situations. You don't have to worry about charging when you're outside. Find a suitable public charging station, remove the EV charging cable from the trunk of your EV car, and you're ready to charge your EV.

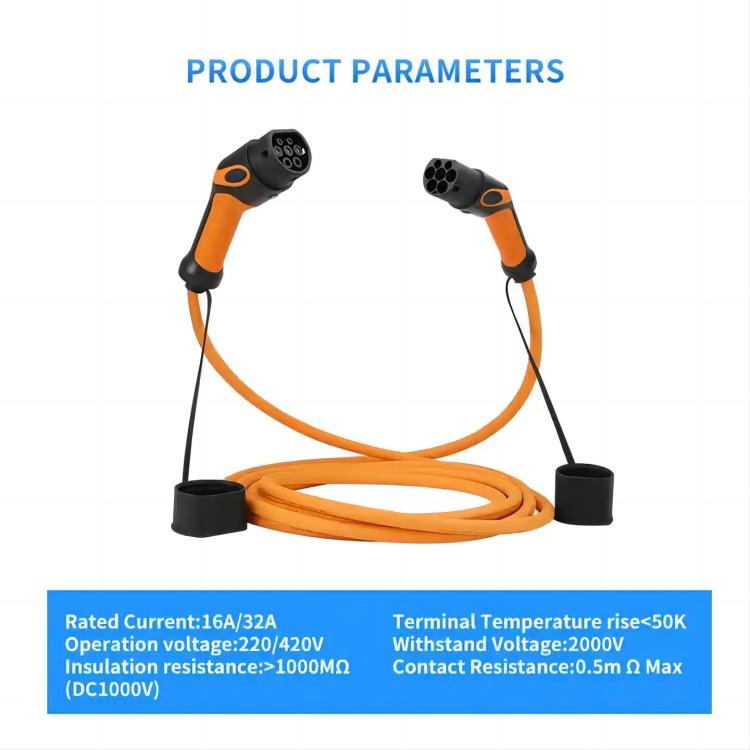

| Product Name | Type 2 to Type 2 32A 3 Phases EV Cable 22kw EV Charging Extension Cable |
| Manufacturer | Guangzhou Magbaud Technology co., ltd. |
| Length | 5m or customized length |
| Rated current | 16A/32A |
| Operation Volatge | 250V/480V |
| Insulation resistance | more than 500M Ohm(DC500V) |
| Contact resistance | 0.5m Ohm max |
| Terminal temperature rise | less than 50K |
| Withstand voltage | 2000V |
| Mechanical life | no-load plug in/out more than 10000 times |
| Coupled insertion force | 45N~100N |
| Impact of external force | can afford 1M drop |
| Operating Temperature | -30~+50ºC |
| Case material | thermoplastic, flame retardant grade UL94 V-0 |
| Termminal | Copper alloy , silver plating |
| Features | Easy: Charge at home, at work, or anywhere with the socket. No installation is required, just an intuitive pairing process. Plug and charge, wherever you are; |
| Safe: Protecting Earthing detection; | |
| Designed for electric cars using the IEC 62196 standard, this car charger offers a maximum charging speed of 3.6 kW per hour. The precision engineering of the internal circuit board allows automatic detection and correction of any problems during charging |
